Going back to Working Reconstruction

I spent today trying to reproduce the result from this post when the reconstruction was working on the Mock Data.

I got it working... here is the code (also in ../logs/110509log.py):

#~~~~~~~~~~~~~~~~~

import numpy as N

from pylab import *

from matplotlib import *

import crlold as crl

from correlationData import *

import galsphere as gals

import datetime as dt

workingDir = 'run2010211_1354'

# Create file names

mockLRGfile,photofile,specfile,corr2dfile,corr3dfile,photo2dfile,photoCDfile,spec2dfile,\

spec3dfile,argumentFile,runConstantsFile,wpsMatrixFile,xiMatrixFile=makeFileNames(workingDir)

oversample = 5.

corrBins = 40.0 #should be one more than you want it to be

mincorr = 0.01

maxcorr = 20.0

convo = 180./pi

corrspace = (maxcorr - mincorr)/corrBins

corrarray = makecorrarray(mincorr, maxcorr, corrspace)

nbins = 40

boxside = 1000.0 #in Mpc/h

xicorrmin = 0.001

xicorrmax = 20.0

nxicorr = 40

#make redshift bins

#boxside = 1000.0 #in Mpc/h

rbinmin = 0 #in Mpc/h

rbinspace = boxside/40 #in Mpc/h

rbinmax = boxside/2.0 + 0.0001 #in Mpc/h

rbins = makeRbins(rbinmin,rbinmax,rbinspace)

nrbins = rbins.size - 1

photoCD = readPhotoCDfile(photoCDfile)

#Create a matrix to input the correlation function data

# Write wps Matrix to file

#The number of redshift bins you want to skip for the

#reconstruction (this removes noisy bins from calculation)

skip = 0

makeWPSmatrix2(workingDir,rbins,corrBins, wpsMatrixFile, skip)

#Create a matrix to input the correlation function data

# Write Xi Matrix to file

makeXimatrix2(workingDir,rbins,nxicorr,xiMatrixFile, skip)

#Plot wps correlation functions

numtoplot = int(nrbins-skip) #number of correlation functions you want to display on plot

numtoplot = 10

plotWPSScreen(skip, numtoplot, workingDir, rbins)

pylab.legend(loc=1)

#Plot xi correlation functions

plotXiScreen(skip, numtoplot, workingDir, rbins)

# compute the xi matrix using the spec sample,

npbins=40#the number of bins you want reconstructed

reconstructmax = 0.5 #in Gpc

reconstructionmin = 0.0 #in Gpc

phibins = linspace(start=reconstructionmin,stop=reconstructmax,num=npbins,endpoint=True)

#phibins =(linspace(2,npbins,num=npbins,endpoint=False)+0.5)*(1./npbins)

sximat=crl.getximat(th,rlos,phibins,rs,xispec,xierr)

# invert to recover phi

phircvd=crl.getCoeff(wps,covar,sximat)

for i in range(len(phircvd.x)):

if (phircvd.x[i] < 0):

phircvd.x[i]=0

print 'the recovered selection function is not normalized.'

outphi4 = phircvd.x

phibins4 = phibins

start = 1

end = npbins - 1

#junkbins = linspace(start=0,stop=0.5,num=100,endpoint=True)

junkbins = phibins

junk = histogram(photoCD/1000., bins=junkbins)

junkdata = junk[0]

plot(junkbins[start:end], junkdata[start:end], 'r.-', label = 'photometric data')

plot((phibins4[start:end]+1.0*phibsize), outphi4[start:end]*sum(junkdata[start:end])/sum(outphi4[start:end]), 'g-', label = 'phi')

plot(phibins4[start:end],outphi4[start:end]*sum(junkdata[start:end])/sum(outphi4[start:end]),'c.-',label='reconstruction %i'%npbins)

#plot((phibins4[2:]-1.5*phibsize)/1000, phi[2:]*size(photoCD), 'g-', label = 'phi')

xlabel('comoving distance (Gpc/h)')

ylabel('number of objects per bin')

title('Redshift Distribution')

from pylab import *

legend(loc=2)

#~~~~~~~~~~~~~~~~~

It involved reverting back to an old version of crl (I saved it as crlold.py) and an older version of the plotting.

Here are the correlation functions:

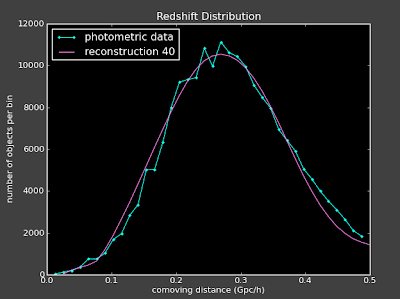

I am getting the same problems with slight changes to the binning, changing how well the reconstruction works. For instance the best reconstruction is here (with 40 bins):

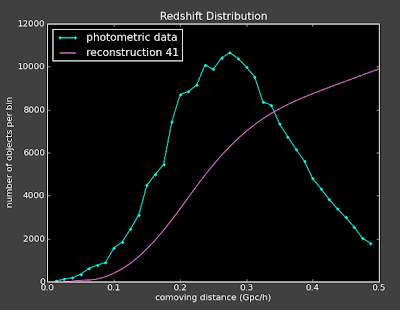

But if I change to 39 or 41 bins, I get a very different reconstruction:

Which makes me wonder if was just dumb luck that it worked for that particular binning in the first place.

I'm also running with a more interesting photometric distribution function to see how that looks. More to come....
